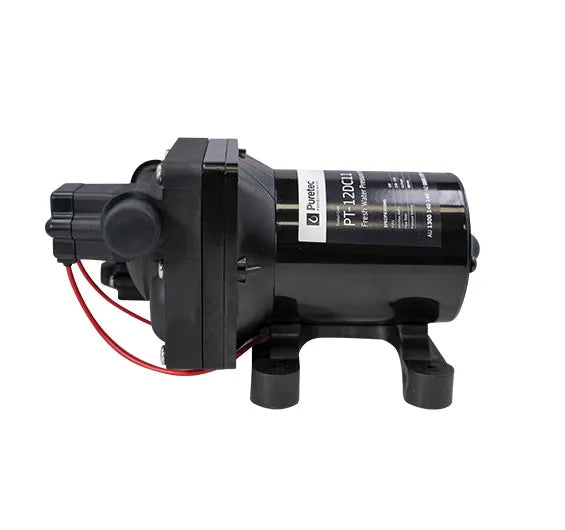

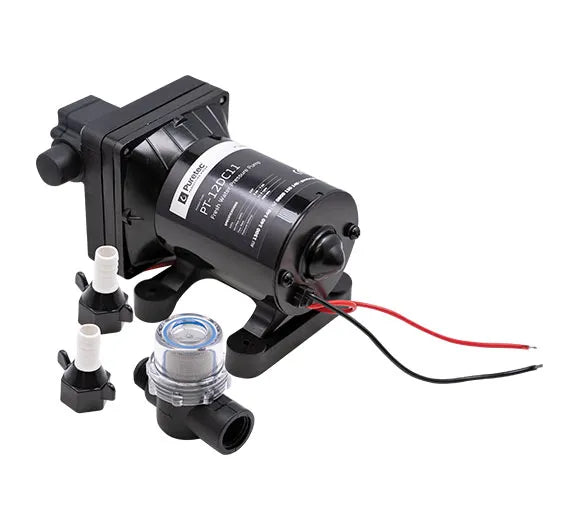

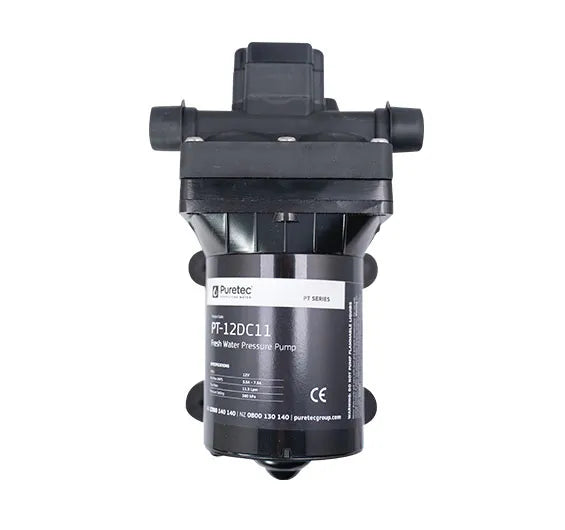

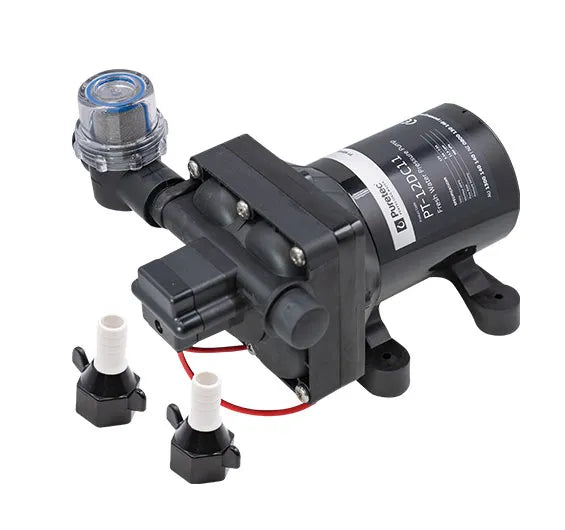

PT-12DC11 Pump

The Puretec PT-12DC11 is a 12V diaphragm pump designed for caravans, RVs, and marine applications. Compact and efficient, it delivers pressurised water wherever it's needed, making it ideal for mobile water systems.

Key Features:

• Flow Rate: Provides up to 11.3 litres per minute, supplying consistent water pressure throughout your vehicle.
• Pressure Rating: Delivers up to 55 psi (379 kPa), suitable for showers, taps, and appliances in mobile setups.
• Self-Priming: Capable of self-priming up to 1.8 metres, allowing flexible installation above the water source.
• Run-Dry Safe: Designed to run dry without damage, offering protection during low water situations.
• Voltage & Power: Operates on 12V DC with a maximum current draw of 7 amps, ideal for standard RV and boat power systems.
• Temperature Tolerance: Handles water temperatures up to 60°C, suitable for a variety of uses.
• Construction: Features a 4-chamber diaphragm with soft rubber mounts for quiet, low-vibration operation.
• Connections: Includes ½” BSP threaded ports and an internal bypass for smooth flow and reduced cycling.
• Dimensions: Compact design measuring 202.5 mm (H) x 125 mm (W) x 111 mm (D), easy to fit into tight spaces.
• Warranty: Comes with a 2-year warranty (parts only), providing confidence in long-term performance.

The PT-12DC11 is a dependable solution for delivering pressurised water in any mobile setup, combining performance, safety, and compact convenience for life on the road.
