Waterworks PNP Swing & Twist Triple Head & Bracket Kit – Sediment, Carbon Block & Hollow-Fiber Cartridges
Waterworks PNP Swing & Twist Triple Head & Bracket Kit – Sediment, Carbon Block & Hollow-Fiber Cartridges
Regular price
$280.00
Regular price
Sale price
$280.00
GST included.
Shipping calculated at checkout.
Couldn't load pickup availability

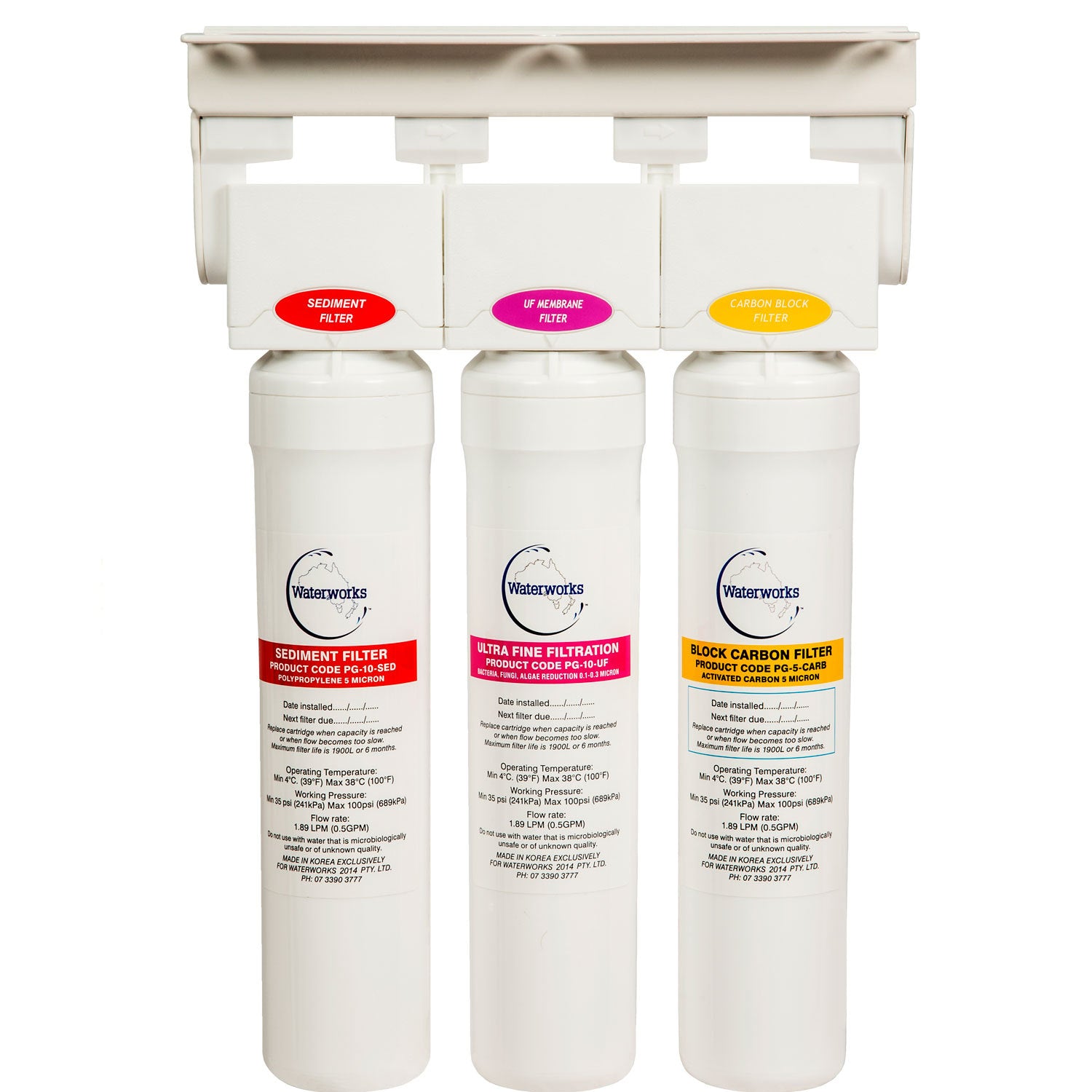

This comprehensive Swing & Twist triple filtration kit includes the Waterworks triple head and mounting bracket with a sediment filter, a carbon block filter, and a hollow-fiber membrane. Designed for high-performance multi-stage filtration, this system removes fine particles, chlorine, taste, odour, and bacteria—delivering clean, safe, great-tasting water for residential, commercial, and food service applications.
Included in Kit:
- Triple Swing & Twist filter head
- Mounting bracket
- Sediment Cartridge – F-PNP-10-SED
- Carbon Block Cartridge – F-PNP-10-CARB-5MIC

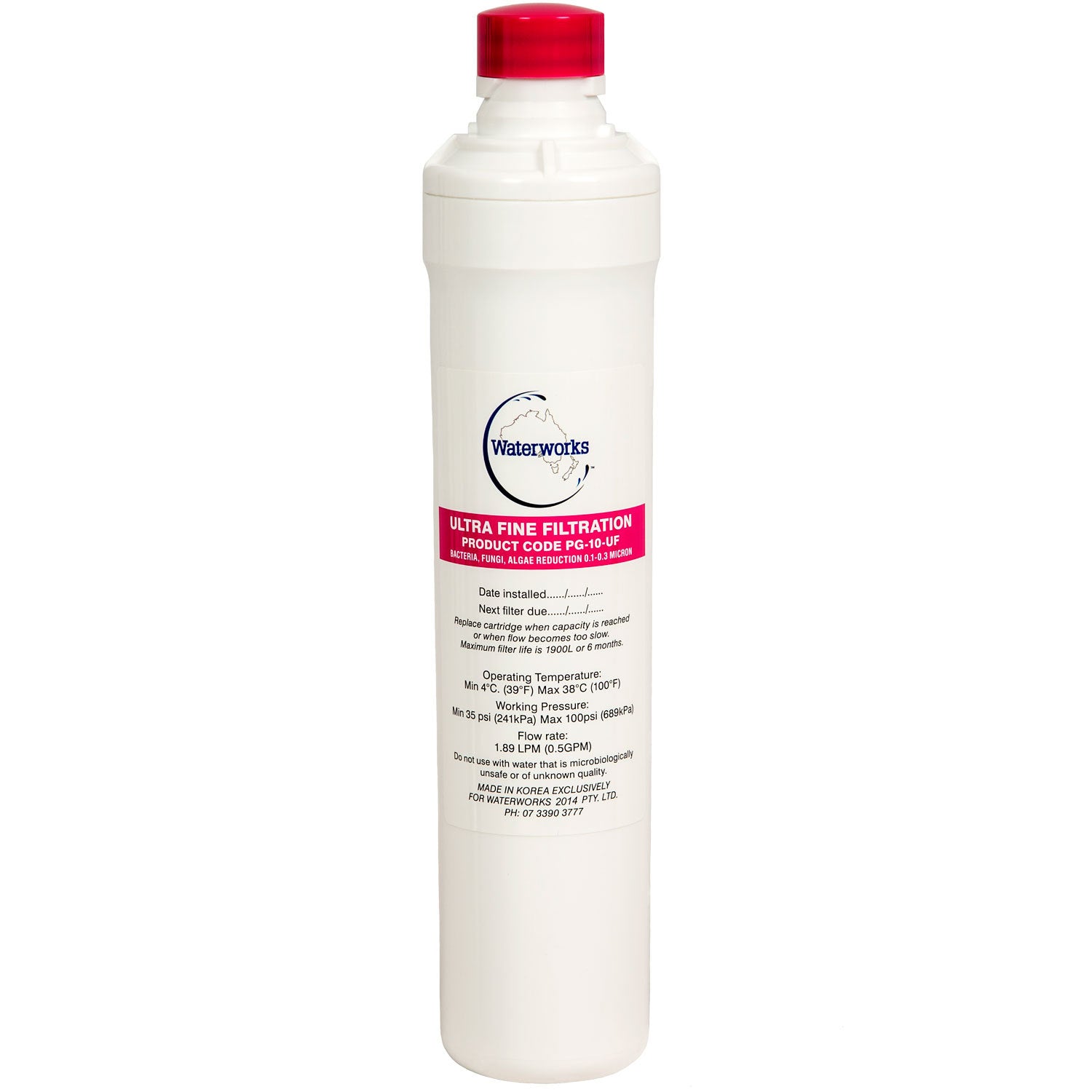

- Hollow-Fiber Cartridge – F-PNP-10-HOL
- Quick-connect fittings
Key Features:
- Stage 1 – Sediment (F-PNP-10-SED): Removes dirt, rust, and fine particles
- Stage 2 – Carbon Block (F-PNP-10-CARB-5MIC): Reduces chlorine, chemicals, taste, and odour
- Stage 3 – Hollow-Fiber (F-PNP-10-HOL): Reduces bacteria and ultra-fine contaminants
- Micron Ratings: 5 microns (Sediment), 5 microns (Carbon), 0.1 micron (Hollow-Fiber)
- Flow Rate: Up to 2 litres per minute
- Filter Life: Up to 1,900 litres or 6 months per cartridge
- Operating Temperature Range: 4°C to 38°C
- Pressure Rating: Max 520 kPa (pressure-limiting valve required at 350 kPa)
- Mounting: Under-sink or wall-mounted installation
- Replacement: Swing & Twist quick-change system with automatic shut-off
- Seal: Each cartridge includes integrated O-ring for a fresh, leak-free seal
Applications:
- High-performance under-sink water filtration
- Water coolers, clinics, dental rooms, and food prep areas
- Commercial kitchens, cafes, and medical offices
- Where multi-stage protection and microbiological safety are required
Certifications:
- Certified under WaterMark Certificate No. 022731
- Manufactured to NSF and WQA standards
Installation Notes:
- Flush all cartridges before initial use
- For use with potable mains water only
- Shut off supply if not in use for extended periods
- Pressure-limiting valve must be installed
- Installation must be completed by a licensed plumber in accordance with local regulations
