General Description

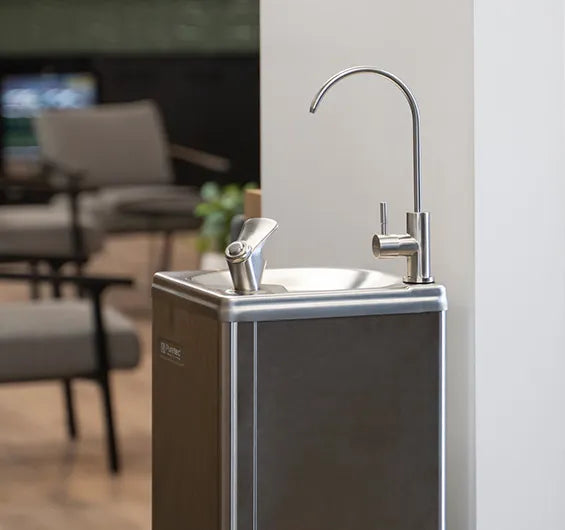

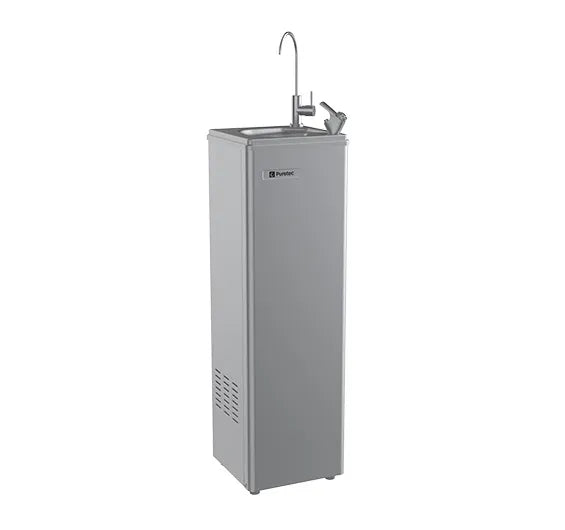

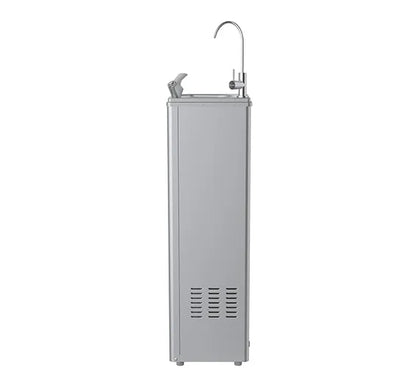

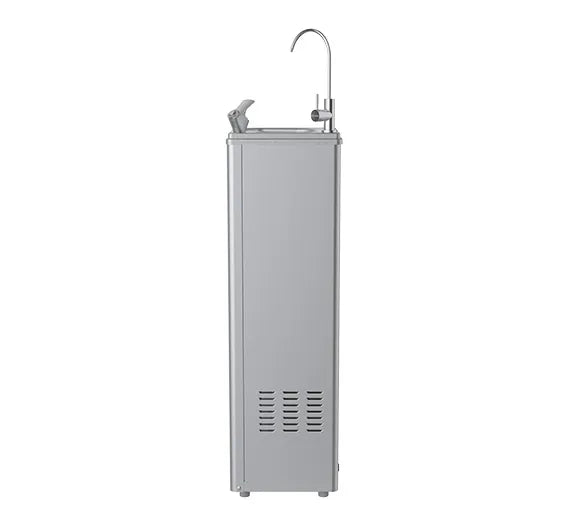

The Puretec DF35 is a freestanding, stainless steel drinking fountain designed to deliver filtered and chilled water. It features a vandal-resistant bubbler and a spring-loaded carafe filler, making it ideal for high-traffic areas such as schools, hospitals, public spaces, and government facilities. The system utilizes Ultra Z Filtration Technology to ensure high-quality water output.
Key Features
-
Filtration: Ultra Z Filtration Technology filters down to 0.1 micron, removing chlorine, taste and odour, sediment, chemicals, bacteria, and 99.9% of Giardia & Cryptosporidium cysts.
-
Cooling Capacity: Delivers up to 35 litres per hour of chilled water at ≤10°C.
-
Dispensing Options: Equipped with a robust anti-tamper bubbler and a separate spring-loaded carafe filler tap that automatically shuts off to prevent water wastage.
-
Construction: Hygienic and durable 304 stainless steel casing.
-
User-Friendly: Mechanically activated push-button ensures water availability even during power outages.
-
Maintenance: Removable access cover allows for easy cartridge replacement.
-
Warranty: 3-year warranty (1 year parts and labour, plus 2 years parts only).
Technical Specifications
Parameter | Specification |
---|---|
Model | DF35 |
Cooling Capacity | 35 L/h (≤10°C) |
Tank Size | 5 litres |
Filtration Cartridge | Z1-R |
Micron Rating | 0.1 micron |
Operating Pressure | 200 – 500 kPa |
Operating Temperature | 4 – 38°C (protect from freezing) |
Voltage | 220 – 240V |
Frequency | 50/60 Hz |
Standby Power Usage | 0.5W |
Max Power Usage | 280W |
Max Cooling Power | 232W |
Working Current | 1.5A |
Coefficient of Performance | 1.16 |
Refrigerant Type | R134a |
Refrigerant Charge | 160g |
Connection | 1/4” tube fitting |
Dimensions (D x W x H) | 305 x 315 x 1220 mm |
Drain Outlet | 40 mm to suit 40 mm PVC DWV pipe/fittings |
Minimum Shell Pressure | 103 kPa (15 psi) |
Cylinder Volume | 8.7 cm³ |
Certifications
-
WaterMark Approved: Complies with AS/NZS 3500.1:2021 standards.
Applications
The DF35 is suitable for:
-
Educational institutions
-
Healthcare facilities
-
Public buildings and spaces
-
Government departments
-
Commercial and industrial settings
