Puretec FILTERWALL-F3-MB

Puretec FILTERWALL-F3-MB Whole House Water Filter System

General Information:

• Model Number: FILTERWALL-F3-MB
• Application: Whole house filtration for mains water supplies
• Size of Residence: Small to Medium

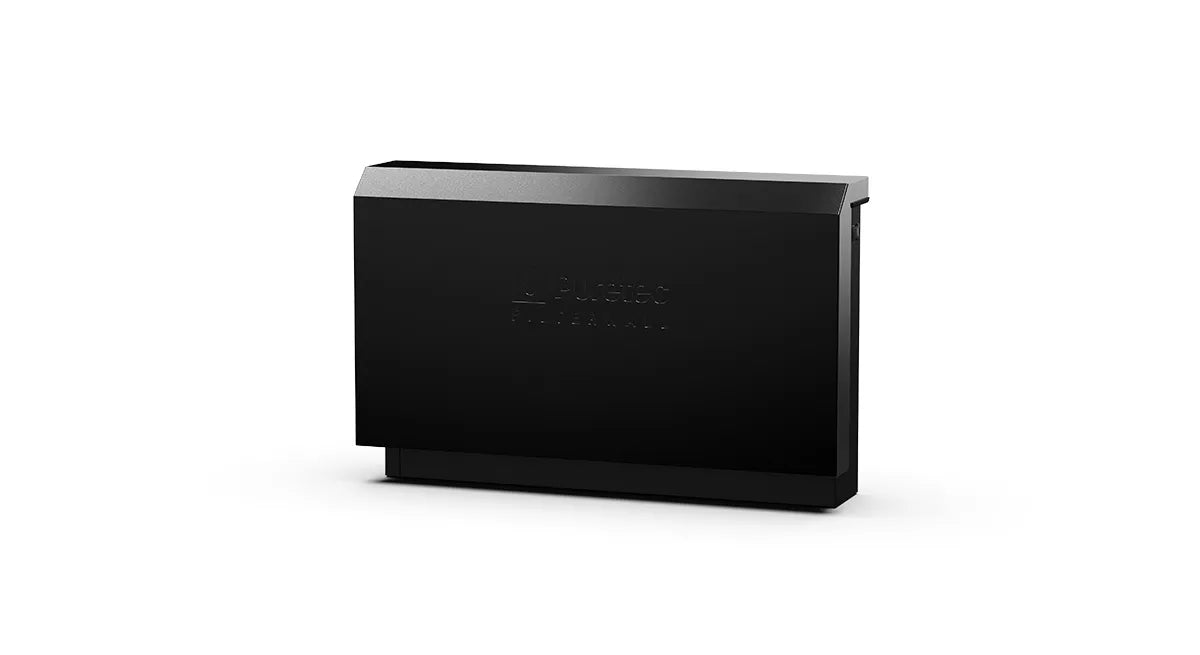

• Installation: Freestanding outdoor unit with protective aluminum housing
• Finish: Midnight Black powder-coated frame

Specifications:

• Maximum Flow Rate: 30 Lpm
• Minimum/Maximum Pressure: 200 - 875 kPa
• Connection Size: ¾” BSP
• Micron Rating: 5 Micron (nominal)
• Operating Temperature Range: 0 - 60°C (protect from freezing)
• Cartridge Size: 10” x 4.5”

Replacement Cartridges:

• Stage 1 Filtration: PL20MP1 (Pleated Sediment Filter – 20 micron)
• Stage 2 Filtration: PX05MP1 (Polyspun Sediment Filter – 5 micron)
• Stage 3 Filtration: CB10MP1 (Carbon Block Filter – 10 micron)

Features & Benefits:

• Delivers filtered water to every outlet in the home
• Reduces PFAS, chlorine, taste, odour, and sediment
• Improves skin and hair health by removing harsh chemicals
• Protects appliances and plumbing from sediment build-up
• Weather-resistant construction with a durable powder-coated cover
• No power required – operates entirely off mains pressure

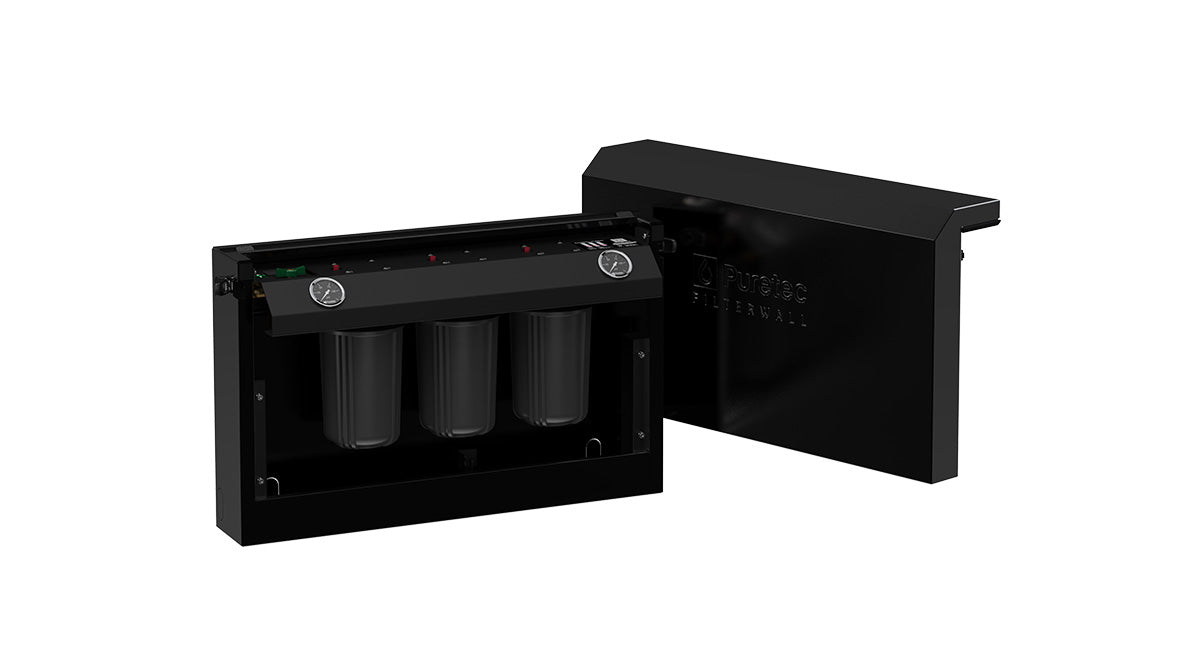

• Quick access design for easy cartridge changes

Dimensions & Weight:

• Height: 580 mm
• Width: 916 mm
• Depth: 227 mm
• Weight: Approx. 32 kg

Maintenance:

• Replace cartridges every 6 to 12 months based on usage and water quality
• Use only genuine Puretec cartridges to ensure system performance and warranty validity
• Maintenance kits available for simplified servicing

Warranty:

• 10 years (1 year parts & labour, 9 years parts only – excludes cartridges)

Installation Notes:

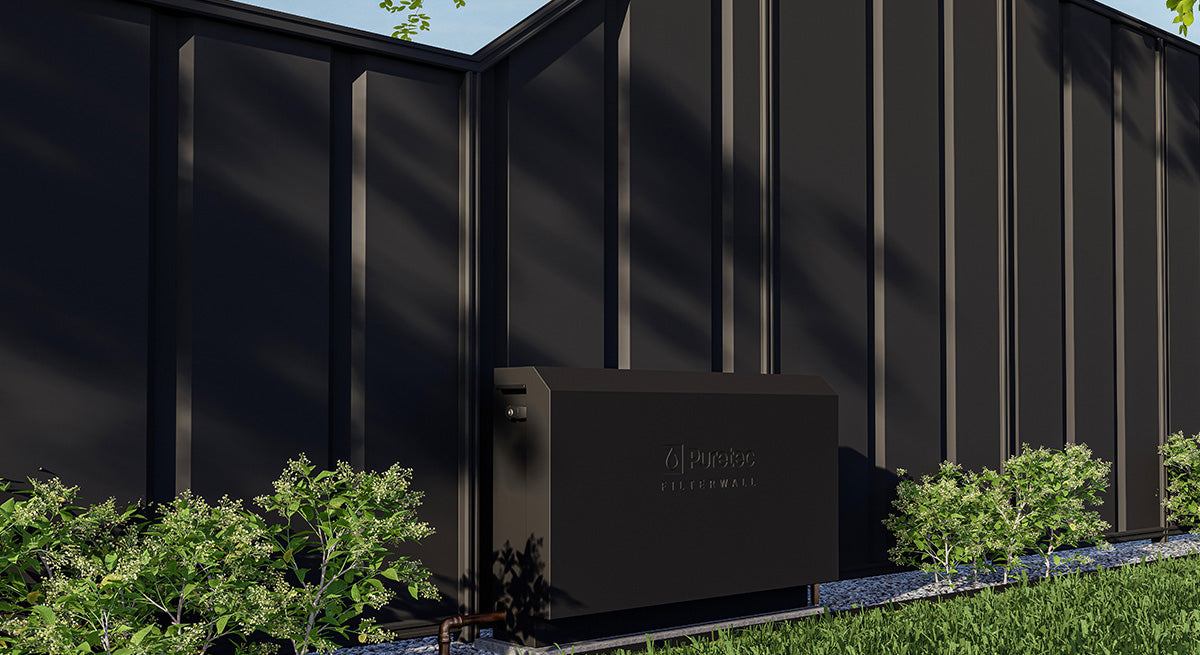

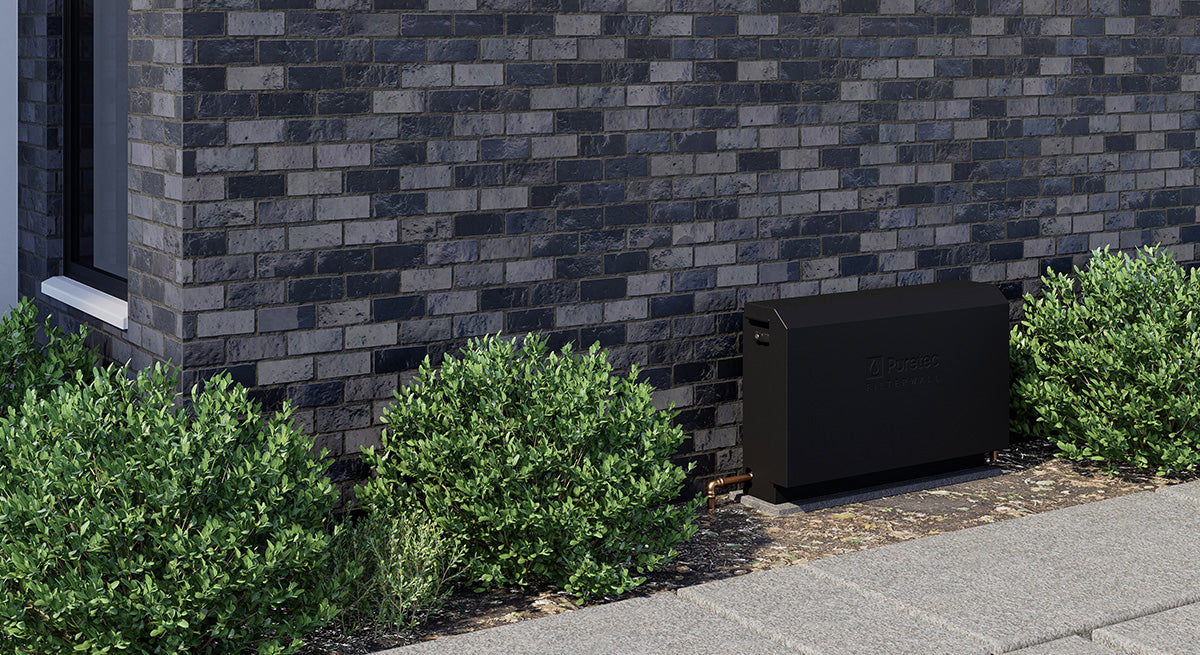

• Suitable for outdoor installation along a fence or house wall
• Avoid direct sunlight and freezing environments
• Includes 500 kPa pressure limiting valve to meet plumbing code requirements
