Puretec FilterWall-F5-MG

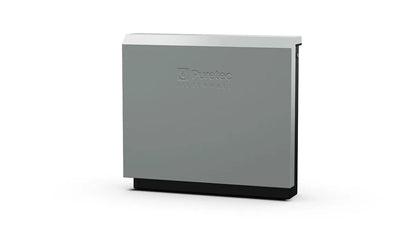

Puretec FILTERWALL-F5-MG Whole House Water Filter System

General Information:

• Model Number: FILTERWALL-F5-MG
• Application: Whole house filtration for mains water supplies
• Size of Residence: Medium to Large
• Installation: Freestanding outdoor unit with protective housing
• Finish: Mineral Grey powder-coated aluminum

Specifications:

• Maximum Flow Rate: 55 Lpm
• Minimum/Maximum Pressure: 200 - 875 kPa
• Connection Size: ¾” BSP
• Micron Rating: 5 Micron (nominal)
• Operating Temperature Range: 0 - 60°C (protect from freezing)
• Cartridge Size: 20” x 4.5”

Replacement Cartridges:

• Stage 1 Filtration: PL20MP2 (Pleated Sediment Filter – 20 micron)
• Stage 2 Filtration: PX05MP2 (Polyspun Sediment Filter – 5 micron)
• Stage 3 Filtration: CB10MP2 (Carbon Block Filter – 10 micron)

Features & Benefits:

• Three-stage filtration reduces PFAS, chlorine, sediment, and other unwanted chemicals.
• Improves taste, odour, and overall water quality throughout the home.
• Helps protect appliances and plumbing by reducing sediment build-up.
• Robust aluminium construction with stone white weather-resistant cover.

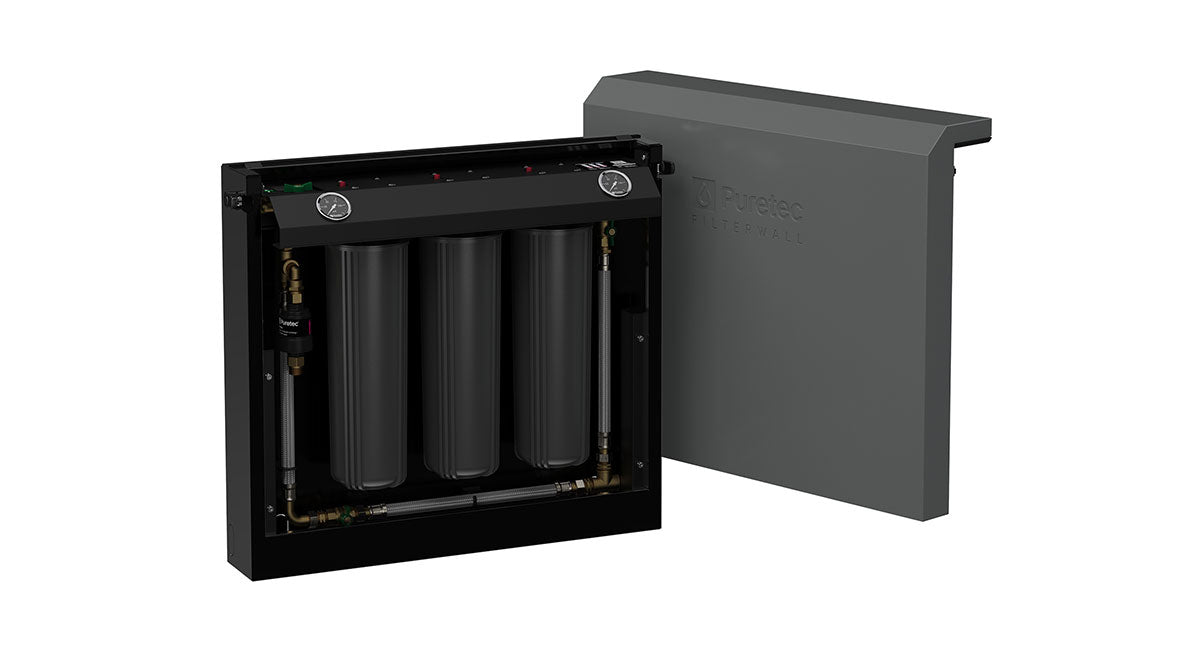

• Designed for easy access and simple cartridge changes.
• No power required for operation.

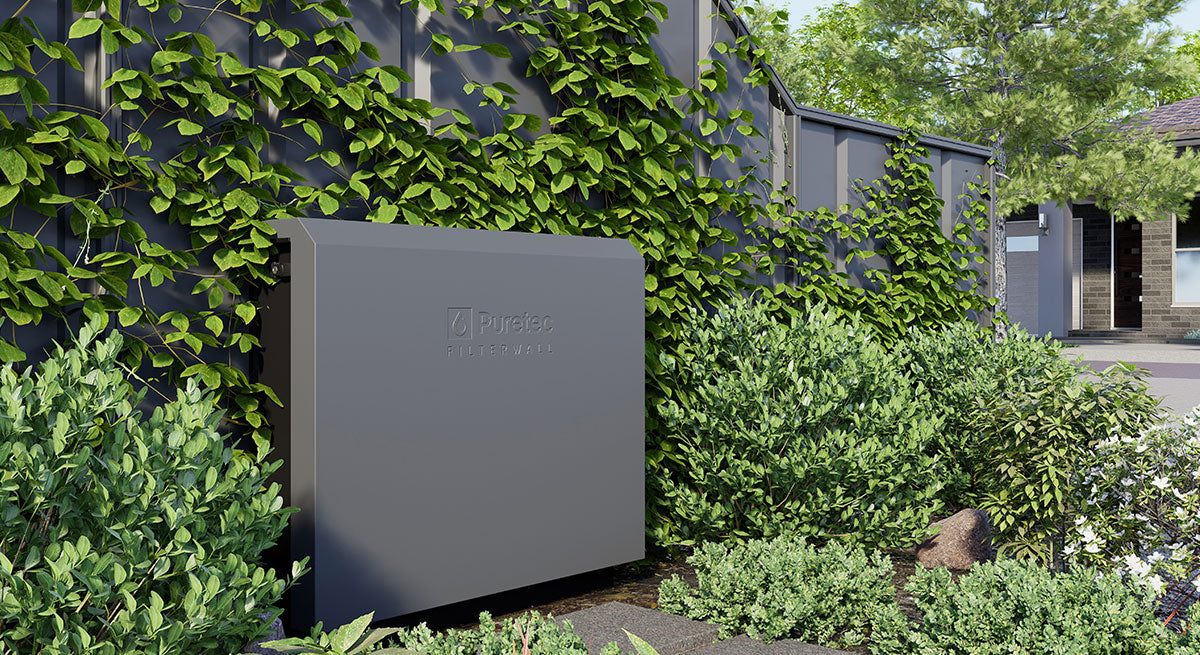

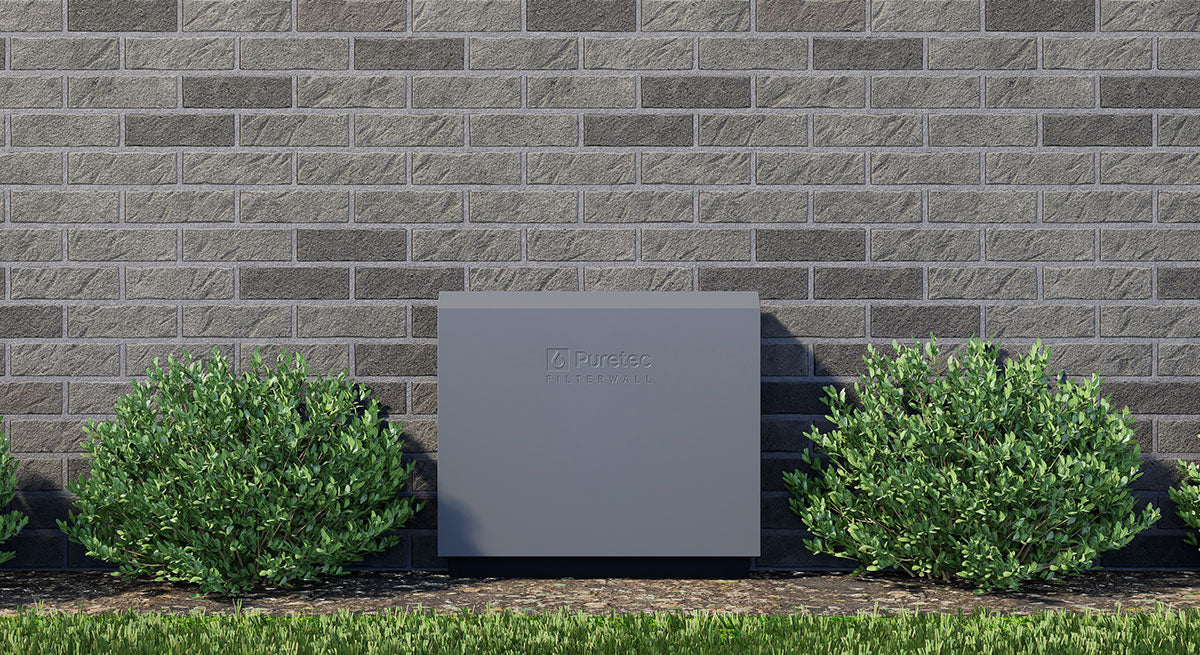

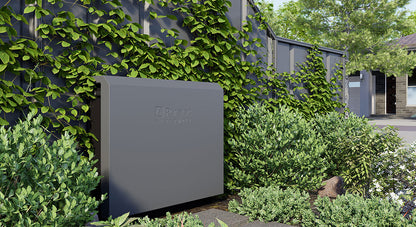

• Stylish appearance suitable for side-of-home or fence mounting.
• Includes a 500 kPa pressure limiting valve for compliance with Australian standards.

Dimensions & Weight:

• Height: 825 mm
• Width: 916 mm
• Depth: 227 mm
• Weight: Approximately 40 kg

Maintenance:

• Replace cartridges every 6 to 12 months, depending on water quality and usage.
• Use genuine Puretec cartridges to maintain system performance and warranty coverage.
• Maintenance kits available for simplified servicing.

Warranty:

10 years (1 year parts & labour, 9 years parts only – excludes cartridges)
