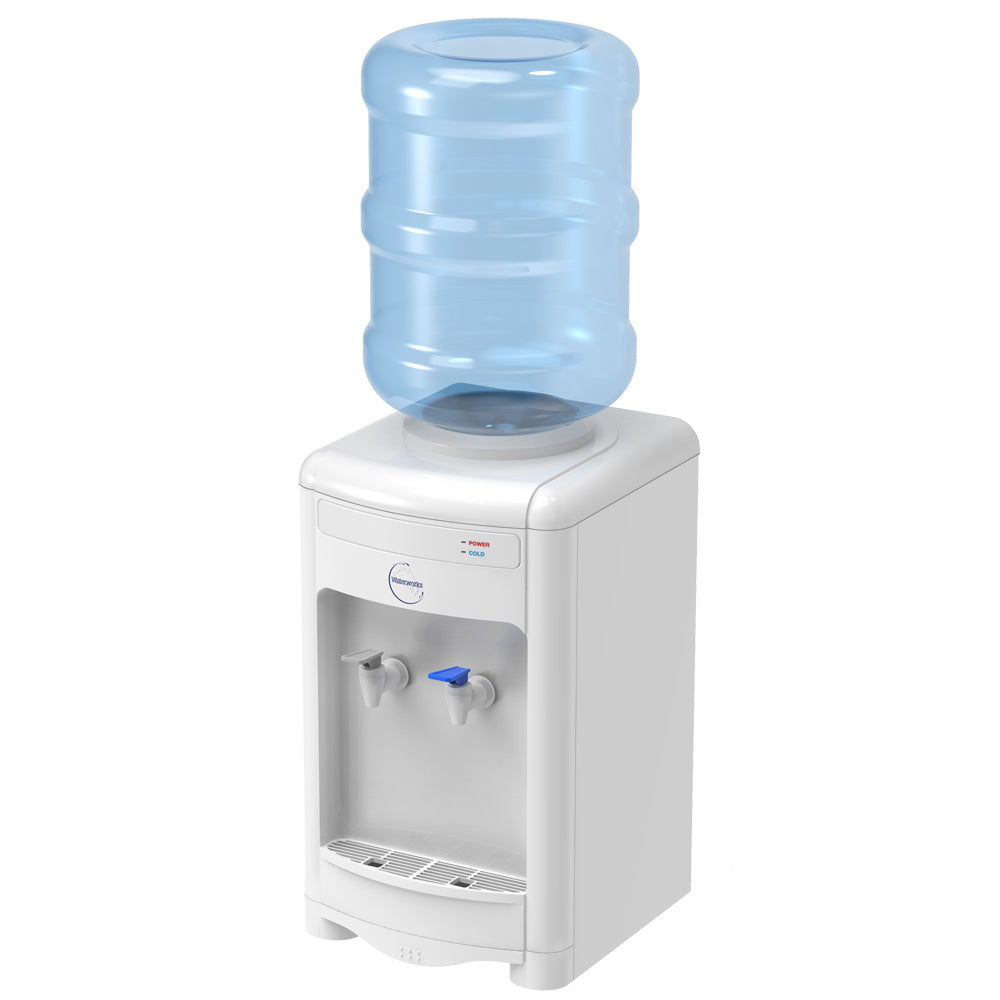

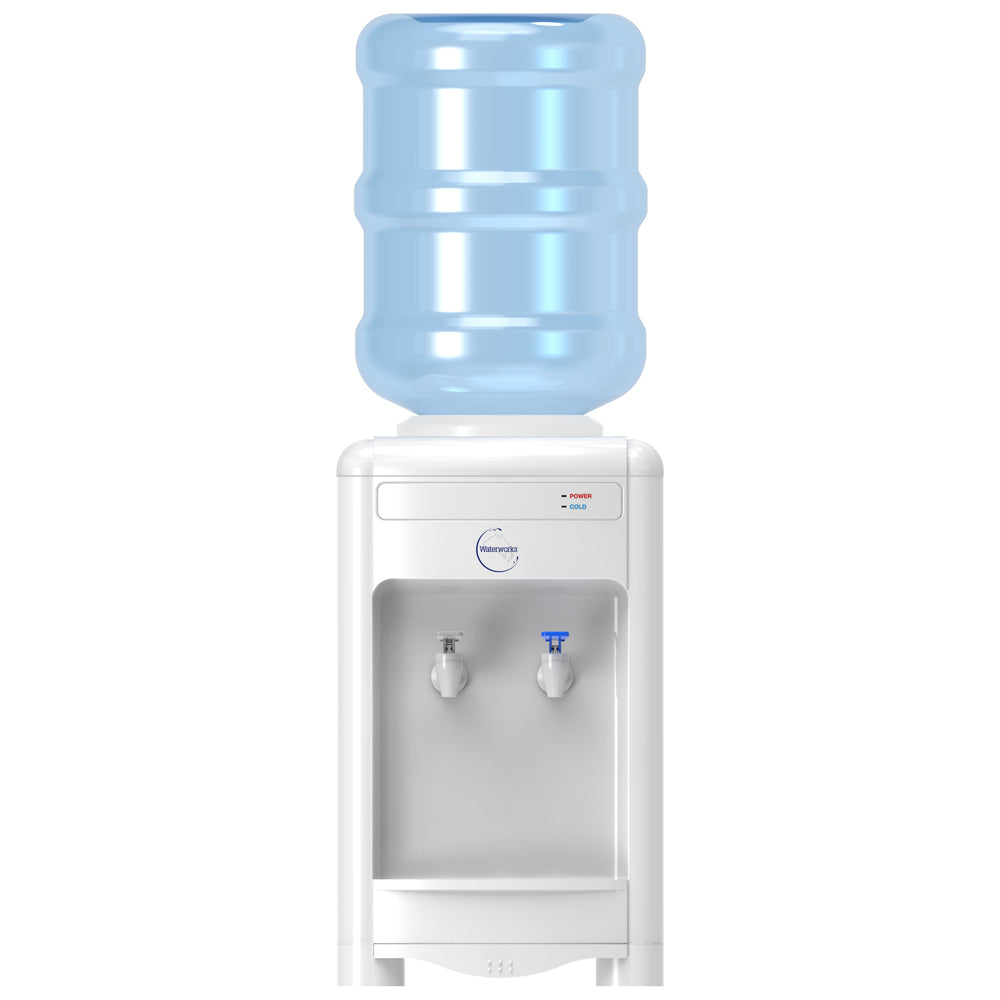

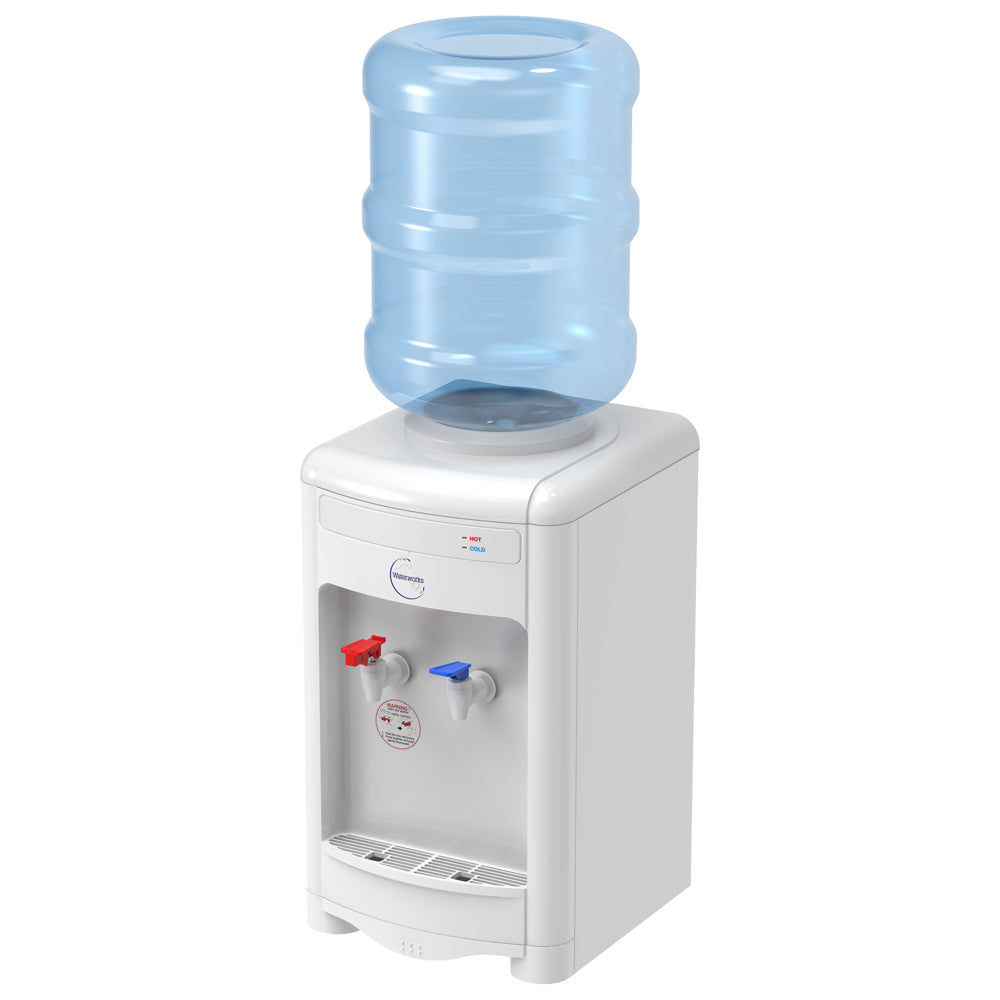

SB5 Cold-Ambient Bench Top Water Cooler

Waterworks SB5 Watercooler

General Features

• Model Options: Available in Cool & Cold or Hot & Cold configurations.
• Design: Designed to fit the Waterworks™ Aquanet® Filter, Self-Fill Bottle, or standard water bottles.
• Materials: Lead-free waterways and stainless steel reservoirs for both hot and cold tanks.
• Colors: Gloss Cloud White finish.
• Warranty: 36-month comprehensive warranty covering parts and labor.

Specifications

Cold Tank

• Capacity: 4 liters
• Material: Hygienic type 304 stainless steel for superior chilling.
• Temperature Range: Approximately 4-8°C

Hot Tank (Hot & Cold Model Only)

• Capacity: 1.8 liters
• Material: Type 304 stainless steel
• Heater: 500-watt sheathed heater
• Temperature Range: Approximately 84-87°C
• Safety: Hot safety tap included

Cabinet

• Construction: Top and front panels are moulded UV-treated ABS; side panels are zinc-coated steel sheets covered in polymer polyester resin.

Taps

• Design: NSF-approved durable polypropylene, self-closing design.
• Types: Fully recessed, lever type for fast flow; optional hygienic push taps available.

Performance

• Cold Water Delivery:
  • 21°C: 4.2 liters/hour
  • 27°C: 3.1 liters/hour
  • 32°C: 1.8 liters/hour
• Hot Water Delivery: 45 x 170ml cups per hour (intermittent use only)

Refrigeration

• Refrigerant: Gas R134A
• Compressor: Hermetically sealed with automatic overload protector
• Condenser: Quietly operating, air-cooled static type

Electrical

• Certification: Certificate number 160793
• Power Supply: 220V, 50Hz single phase
• Power Cord: 1.5 meters
• Full Load Current: 1.2 amps

Dimensions & Weight

• Model SB5C: 16kg
• Model SB5CH: 18kg
• Width: 33cm
• Depth: 33cm
• Height: 60cm

Optional Extras

• Self-Fill Bottle: Flexible filtration option for home, office, or factory use.
• Aquanet®: Non-splash valve for easy bottle changes.
