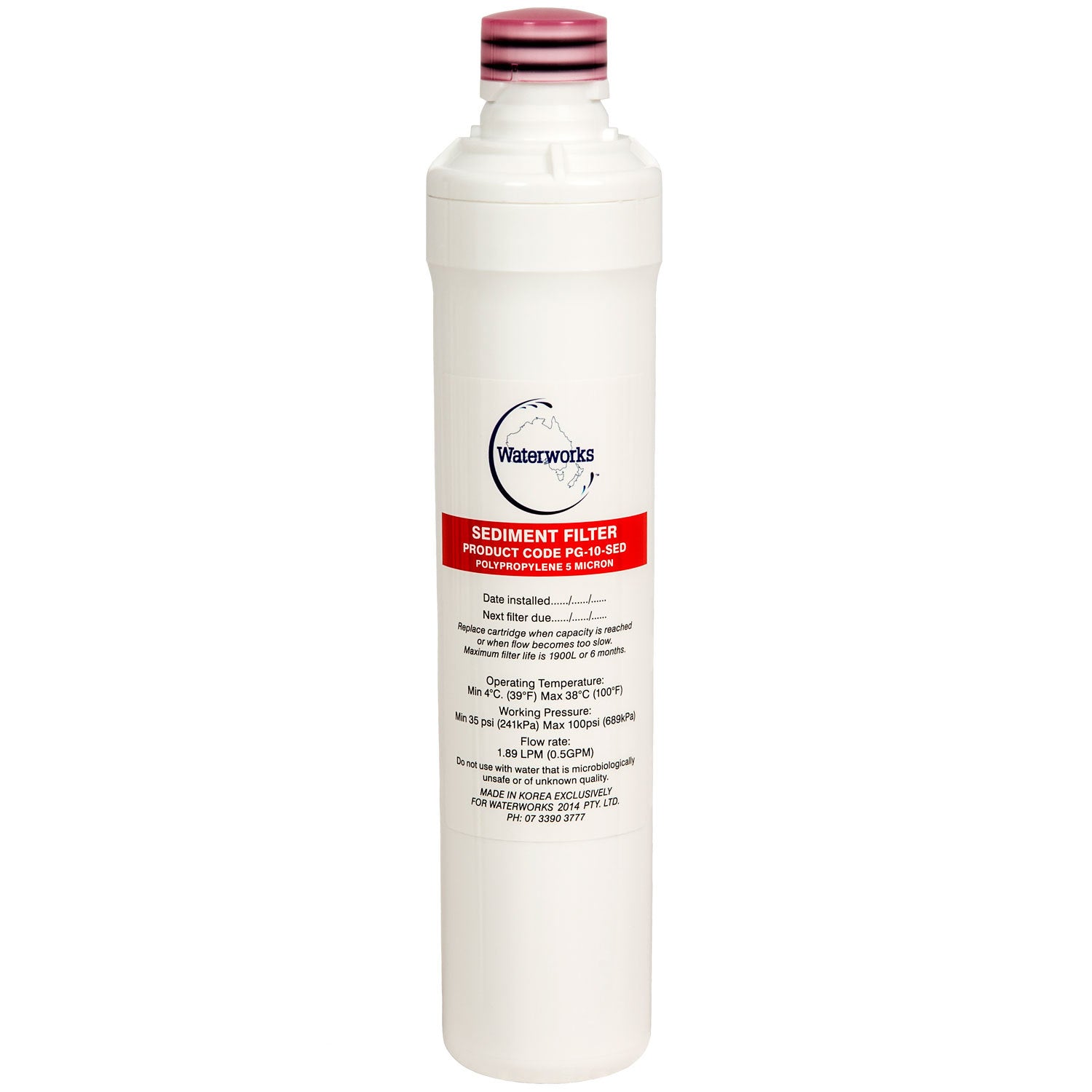

Waterworks Swing & Twist Filtration System – Sediment Cartridge

The Waterworks F-PNP-10-SED Sediment Cartridge is a high-performance pre-filter designed for the Swing & Twist (PNP) filtration system. It efficiently removes dirt, rust, sand, silt, and other fine particles from mains water, protecting downstream filters and appliances. This cartridge is ideal as the first stage in a multi-filter system, ensuring clearer water and extending the life of carbon or specialty filters.

Key Features:

Filtration Media: Polypropylene depth filter

Micron Rating: 5 microns

Flow Rate: 2 litres per minute

Filter Life: Up to 1,900 litres or 6 months (whichever comes first)

Operating Temperature Range: 4°C to 38°C

Design: Compact and space-efficient – fits under-sink or behind water dispensers

Replacement Mechanism: Swing & Twist quick-change design with automatic shut-off

Seal: Built-in O-ring ensures a fresh seal with each replacement

Applications:

• Pre-filtration for under-sink water systems
• Protection for carbon, phosphate, and hollow-fiber filters
• Use with water coolers, POU dispensers, and household filtration setups
• Suitable for residential, office, and light commercial use

Certifications:

• Certified under WaterMark Certificate No. 022731
• Manufactured to comply with NSF and WQA standards

Installation Notes:

• Always install as the first stage of filtration for best results
• Pre-flush filter before first use or after periods of disuse
• Use only with mains or potable water supplies
• A pressure-limiting valve (set at 350 kPa) is required
• Installation must be performed by a licensed plumber in accordance with local plumbing codes
