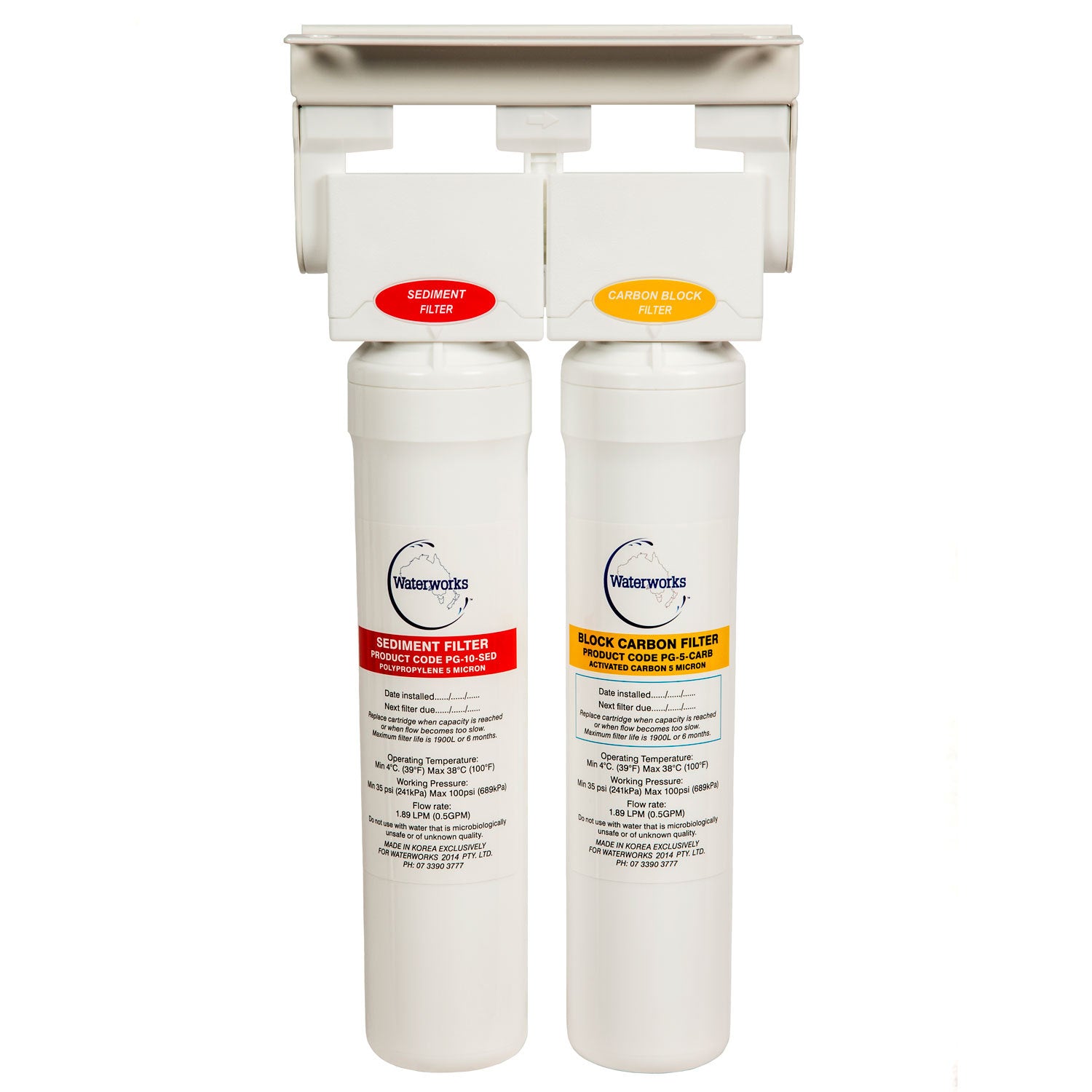

Waterworks Swing & Twist Twin Filtration System – Sediment & Carbon Block Kit

This complete Swing & Twist twin filtration kit includes the Waterworks twin head and mounting bracket with two cartridges: a 5-micron sediment filter and a 5-micron carbon block filter. Designed for easy installation and tool-free maintenance, this two-stage system removes dirt, rust, chlorine, and unpleasant taste—providing cleaner, better-tasting water for residential and commercial applications.

Included in Kit:

• Twin Swing & Twist filter head
• Mounting bracket
• Sediment Cartridge – F-PNP-10-SED
• Carbon Block Cartridge – F-PNP-10-CARB-5MIC
• Quick-connect fittings

Key Features:

Cartridge 1 – Sediment (F-PNP-10-SED): Removes dirt, sand, and rust

Cartridge 2 – Carbon Block (F-PNP-10-CARB-5MIC): Reduces chlorine, taste, odour, and chemicals

Micron Rating: 5 microns each

Flow Rate: Up to 2 litres per minute

Filter Life: Up to 1,900 litres or 6 months per cartridge

Operating Temperature Range: 4°C to 38°C

Pressure Rating: Max 520 kPa (install a pressure-limiting valve set at 350 kPa)

Mounting: Suitable for under-sink or behind water coolers

Replacement: Quick-change Swing & Twist design with auto shut-off

Seal: Integrated O-rings for a fresh seal every time

Applications:

• Under-sink drinking water systems
• Office and workplace water coolers
• Cafes, clinics, waiting rooms, and food service
• Pre-filtration for more advanced treatment systems

Certifications:

• Certified under WaterMark Certificate No. 022731
• Manufactured to comply with NSF and WQA standards

Installation Notes:

• Pre-flush both cartridges before use
• For mains or potable water only
• Turn off supply during long periods of non-use
• Use a pressure-limiting valve where required
• Installation must be completed by a licensed plumber in accordance with local regulations
