Waterworks Swing & Twist Filtration System – Ultra Carbon Block Cartridge

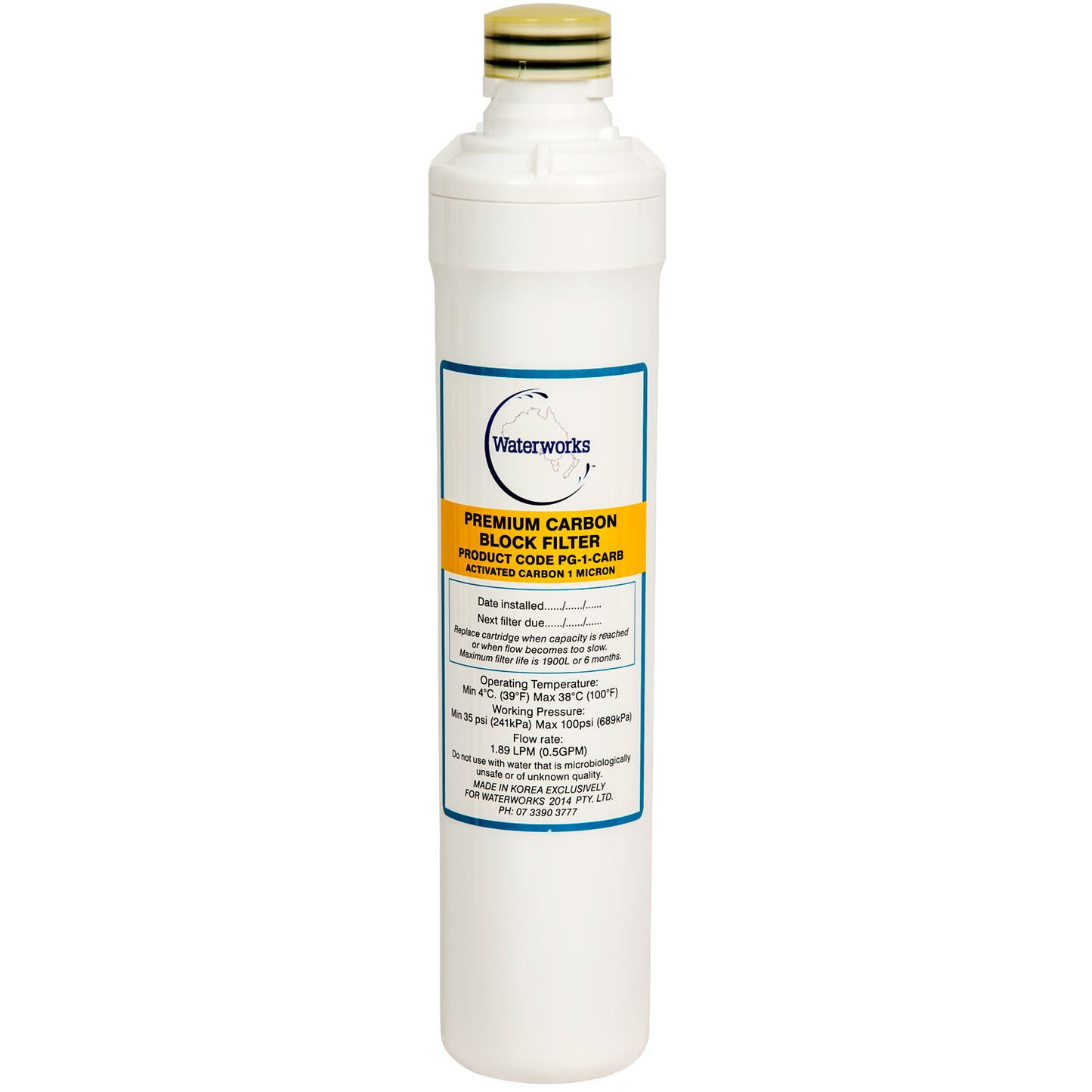

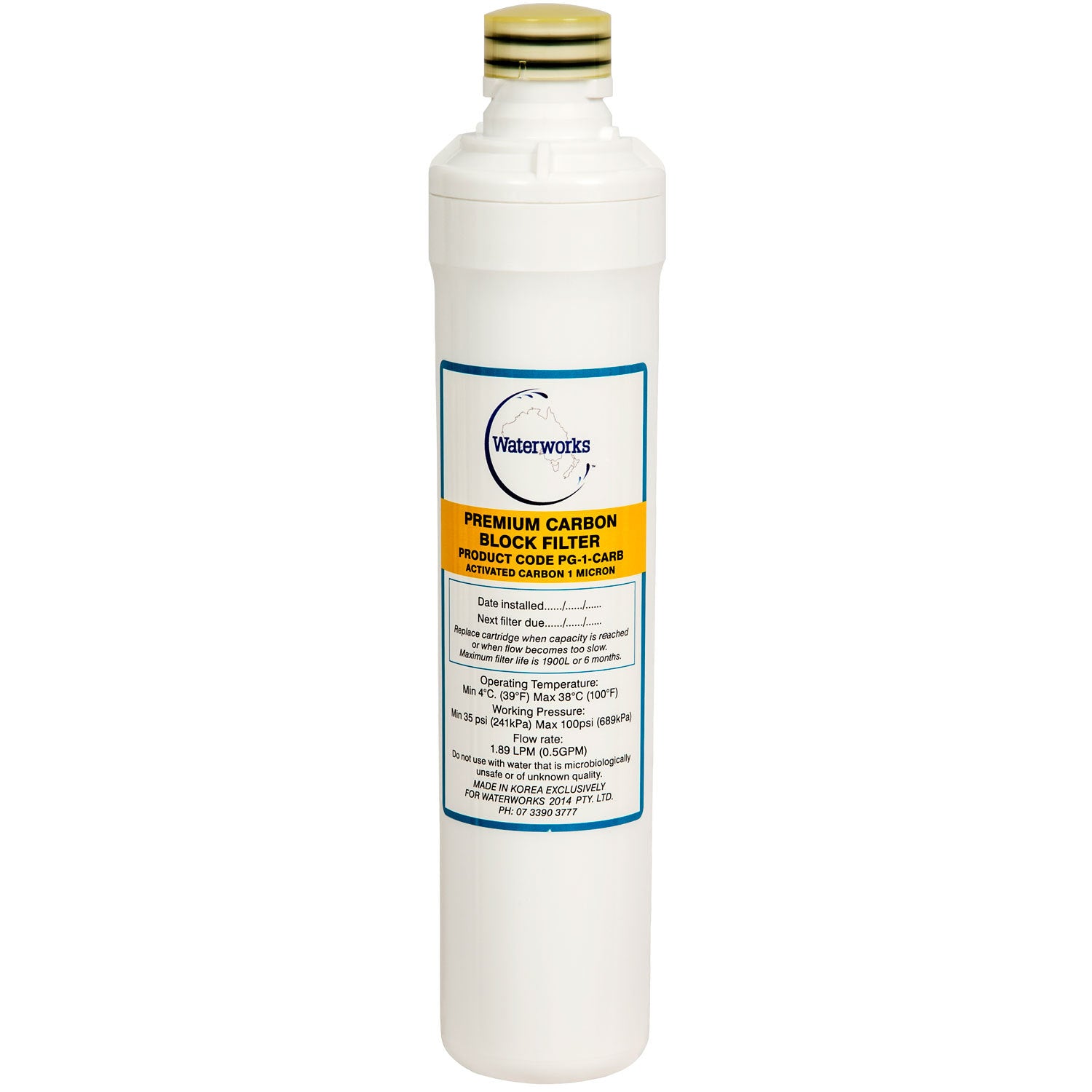

The Waterworks F-PNP-10CARB-1MIC is a premium silver-impregnated ultra carbon block filter cartridge, designed for use with the Swing & Twist (PNP) filtration system. It provides enhanced filtration by reducing chlorine, chemicals, tastes, odours, and fine sediment from mains water—delivering cleaner, safer, and better-tasting water. Its twist-lock design allows for fast, tool-free cartridge replacement.

Key Features:

Filtration Media: Silver-impregnated carbon block

Micron Rating: 1 micron

Flow Rate: 2 litres per minute

Filter Life: Up to 1,900 litres or 6 months (whichever comes first)

Operating Temperature Range: 4°C to 38°C

Design: Space-saving and compact – ideal for under-sink use or behind POU water dispensers

Replacement: Easy swing-and-twist changeout with automatic shut-off

Seal: Built-in O-ring for a fresh, secure seal with every change

Applications:

• Under-sink water filtration
• Point-of-use water coolers and dispensers
• Residential and light commercial use

Certifications:

• Certified under WaterMark Certificate No. 022731
• Manufactured to meet NSF and WQA standards

Installation Notes:

• Pre-flush the filter before use or after long periods of inactivity
• Not intended for water of unknown microbiological quality without disinfection
• Shut off the water supply when not in use for extended periods
• Must be used with a pressure-limiting valve set to 350 kPa
• Installation should be completed by a licensed plumber following local regulations
