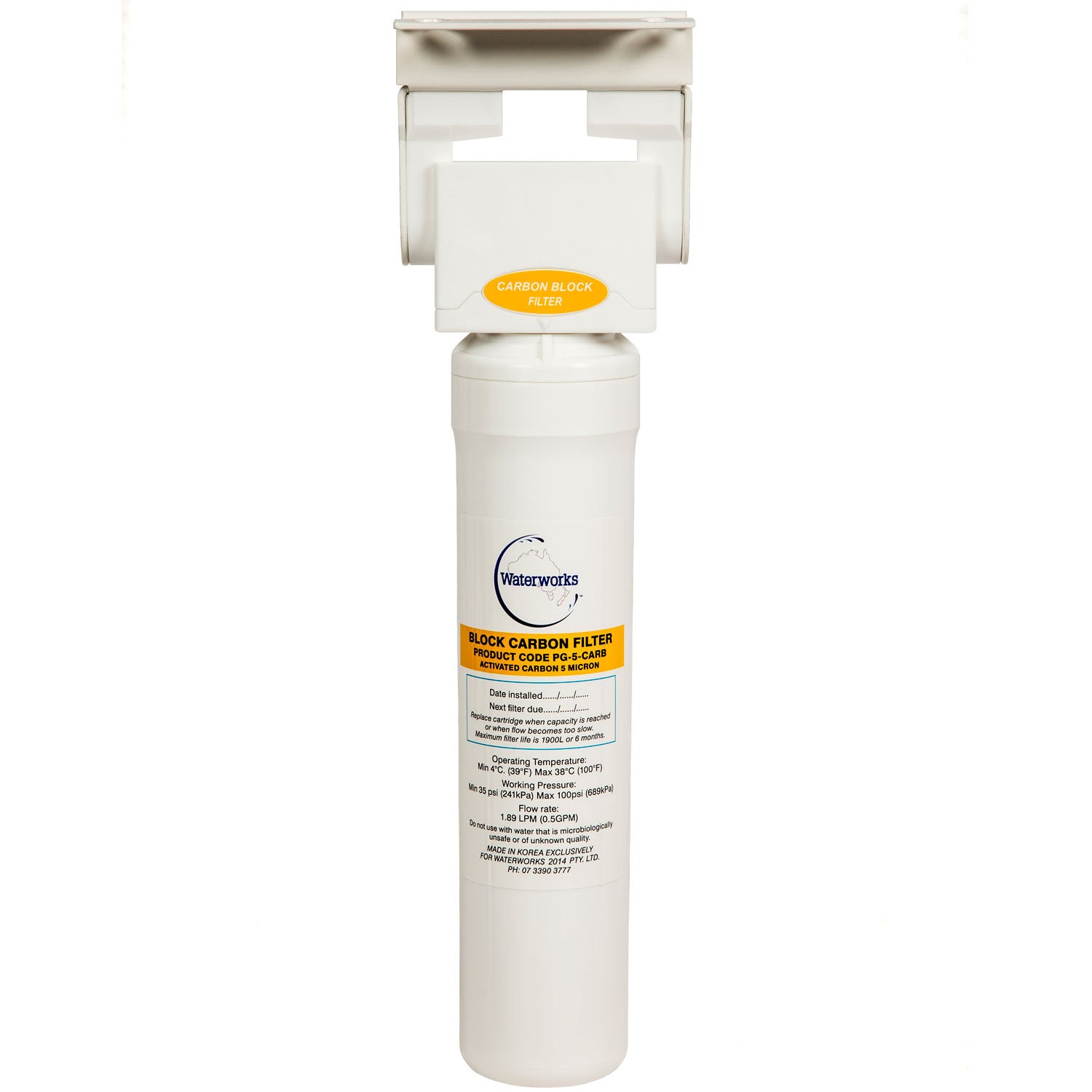

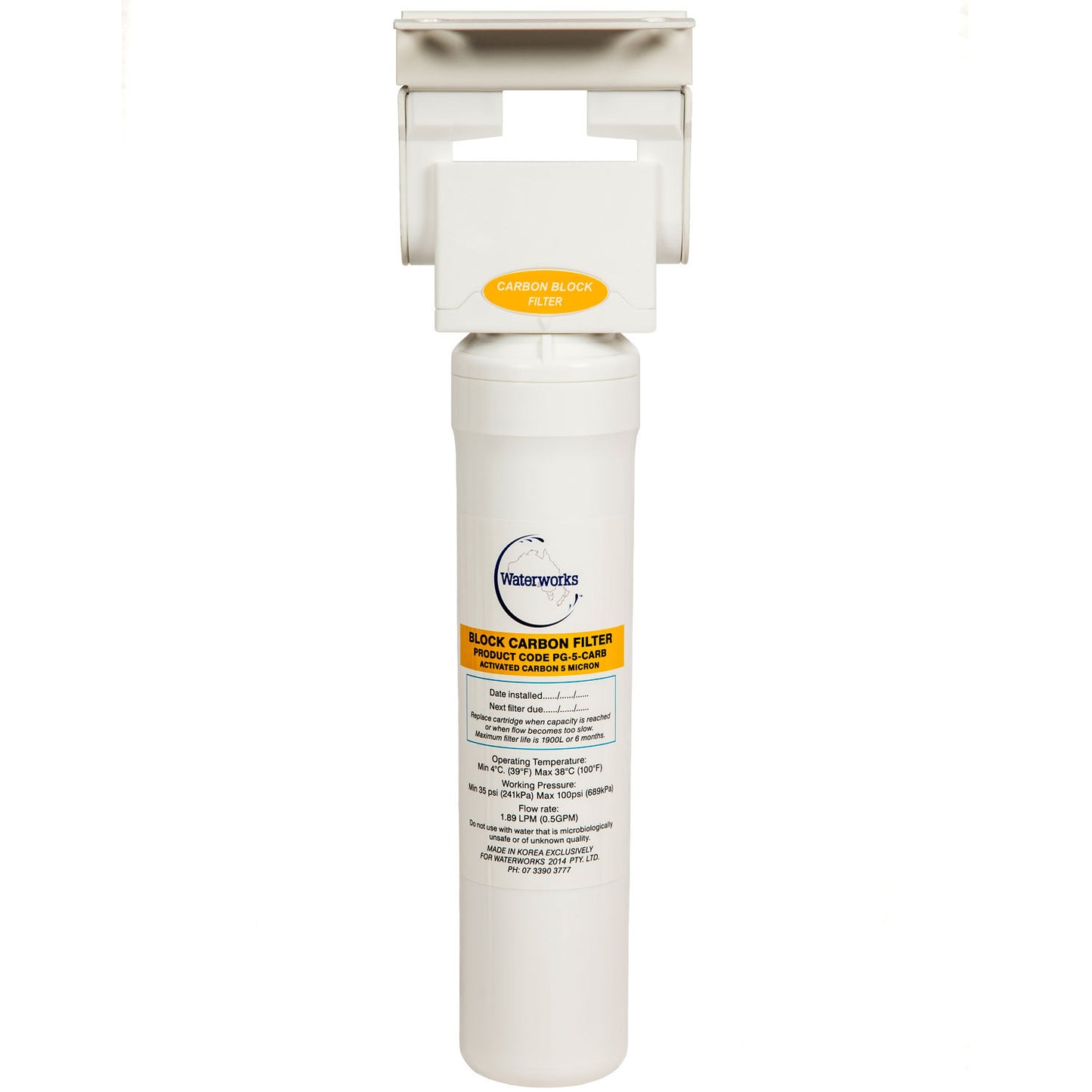

PNP Swing & Twist Single Head & Bracket Kit – 5 Micron Carbon Block Cartridge

This complete Swing & Twist filtration kit includes the Waterworks single head and mounting bracket with a carbon block filter cartridge (5 micron). Designed for quick, tool-free installation and maintenance, this system is ideal for under-sink applications or use behind water coolers. The silver-impregnated carbon block effectively reduces chlorine, odours, chemicals, and unpleasant taste from mains water.

Included in Kit:

• Swing & Twist single filter head
• Mounting bracket
• Carbon Block Filter Cartridge (Model: F-PNP-10-CARB-5MIC)
• Quick-connect ports

Key Features:

Filter Media: Silver-impregnated carbon block

Micron Rating: 5 microns

Flow Rate: Up to 2 litres per minute

Filter Life: Up to 1,900 litres or 6 months (whichever comes first)

Temperature Range: 4°C to 38°C

Pressure Rating: Maximum 520 kPa (recommended pressure-limiting valve at 350 kPa)

Mounting: Wall or cabinet mounting via supplied bracket

Cartridge Replacement: Swing & Twist tool-free mechanism with automatic shut-off

O-Ring Seal: Integrated into the cartridge for a fresh seal with every replacement

Applications:

• Under-sink drinking water filtration
• Point-of-use water coolers and dispensers
• Offices, homes, cafés, and medical rooms
• First-stage filtration for multipoint systems

Certifications:

• WaterMark Certified (Certificate No. 022731)
• Manufactured to NSF and WQA standards for water treatment components

Installation Notes:

• Mount the bracket securely in an accessible location
• Flush the cartridge before use
• Use only with potable mains water
• Install a pressure-limiting valve if incoming pressure exceeds 350 kPa
• Installation must be carried out by a licensed plumber
